Quick Start Guide A124F Biometric Terminal

Created by Dave McMaster, Modified on Tue, 22 Jul at 2:28 PM by Dave McMaster

Introduction

Thanks for purchasing your new A124F Clocking in System. The following instructions will explain how to get started with the terminal, accessing the menu system, enrolling staff and connecting to your network. Please be aware that not all enrolment features may be available depending on which version you have purchased. You should have already received a welcome email with a link to your software instance and the guide ‘Getting Started With Evotime’. If you haven’t received this, please give us a call on 0113 2587856.



TABLE OF CONTENTS


Wall Mounting

When considering mounting the terminal, first choose a suitable position on a flat wall. The recommended installation height is around 140cm from the floor but adjust as necessary to suit your staff height.



First hold the back plate level on the wall, choose and mark up the 2 hole centres.



Next drill the holes using a suitable drill bit for the type of wall and insert the provided wall plugs.



After this mount the wall plate and secure with the screws also provided.

Finally attach the terminal to the back plate (don’t forget to plug in power and ethernet cables as required) and fit the locating screw to secure.





Wall Mounted Installation



Desktop Installation



Setting up the A124F Biometric Terminal

 To get started, plug in your terminal with the 12v power supply included and switch on (switch on the left side of the terminal). Please be aware that a default Admin password has been set up for terminal security. You can set up your own additional Admin accounts later, but we advise leaving the default one in place, just in case you accidentally lock yourself out.



Accessing the Terminal

Once the terminal has powered up fully tap the screen in the centre twice to bring up the ‘settings cog’ on the bottom left side of the screen.

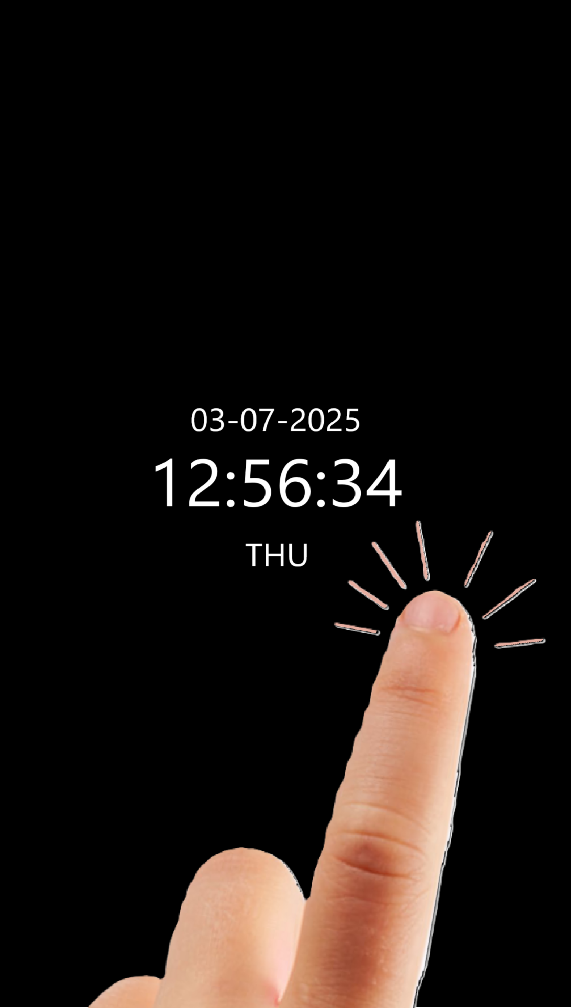

First tap the screen to wake

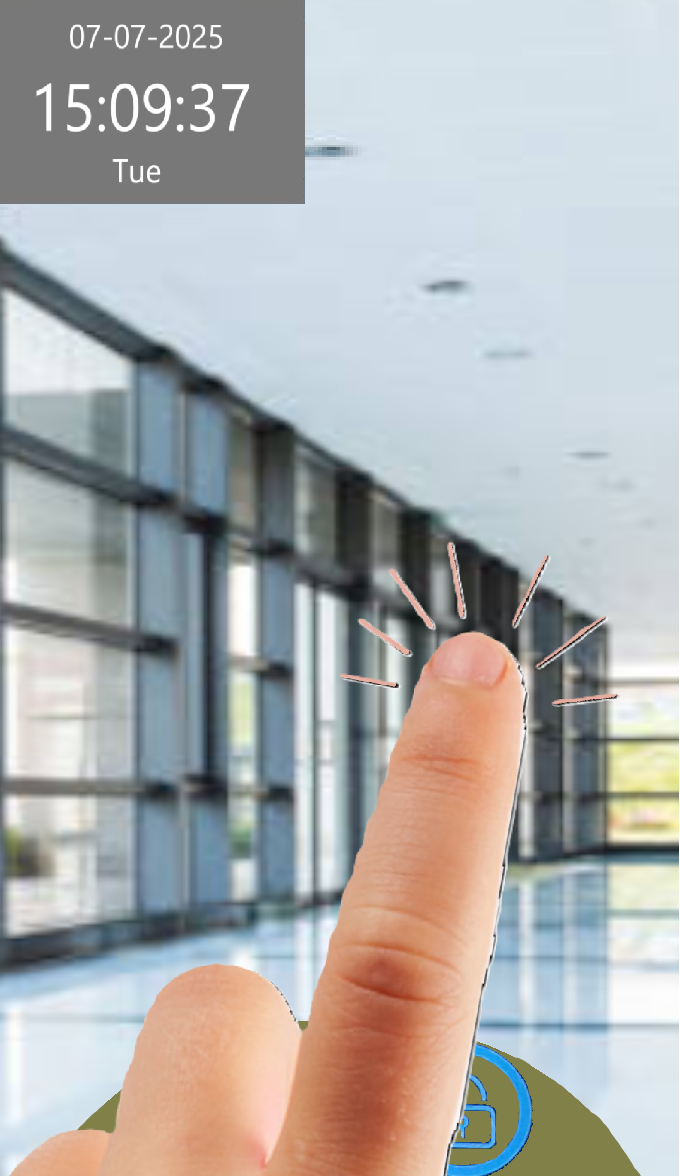

Second tap the screen again









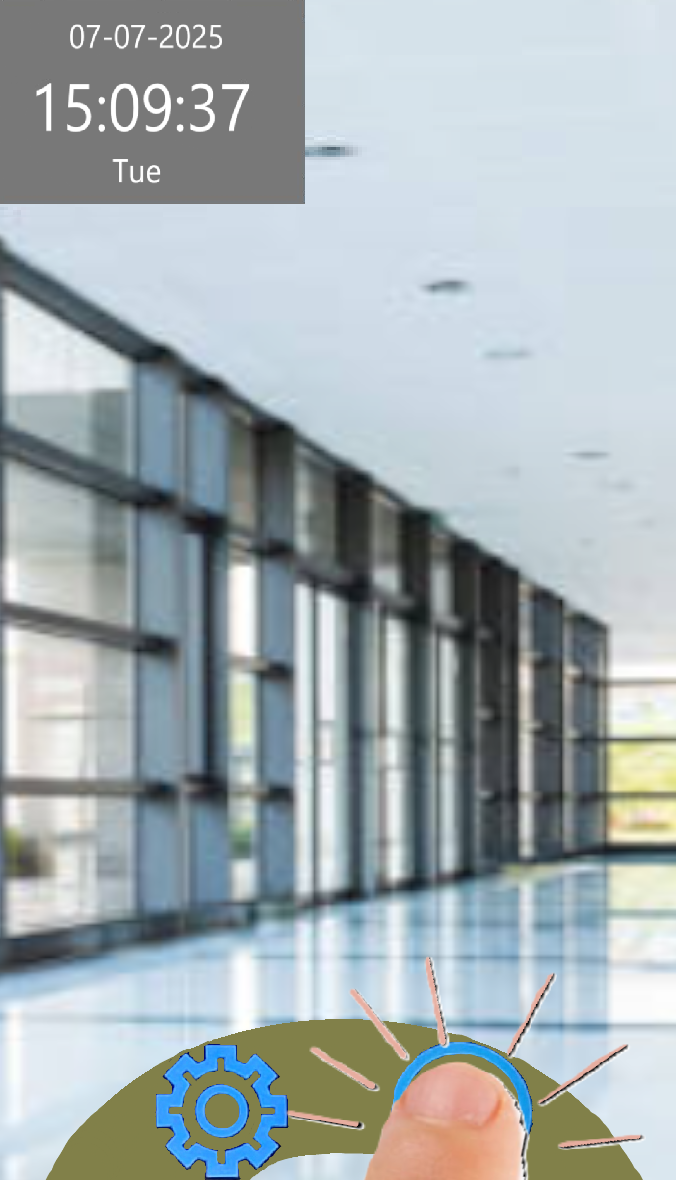

Third tap the cog

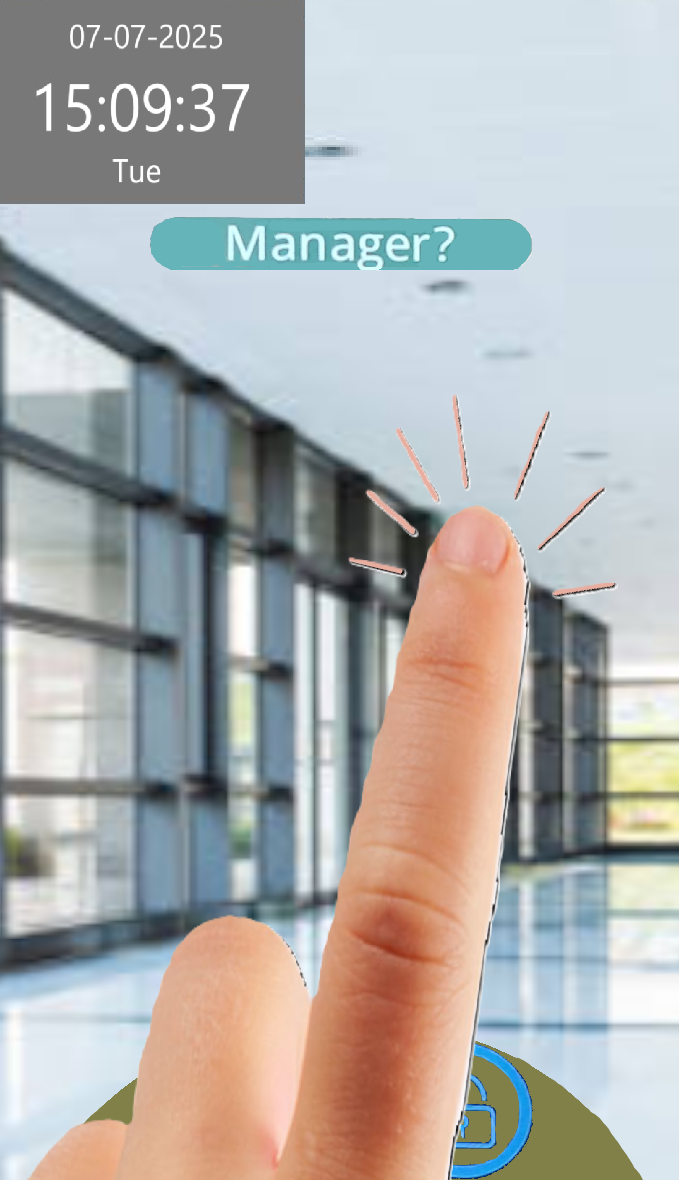

Fourth tap the screen when the Manager Icon is displayed




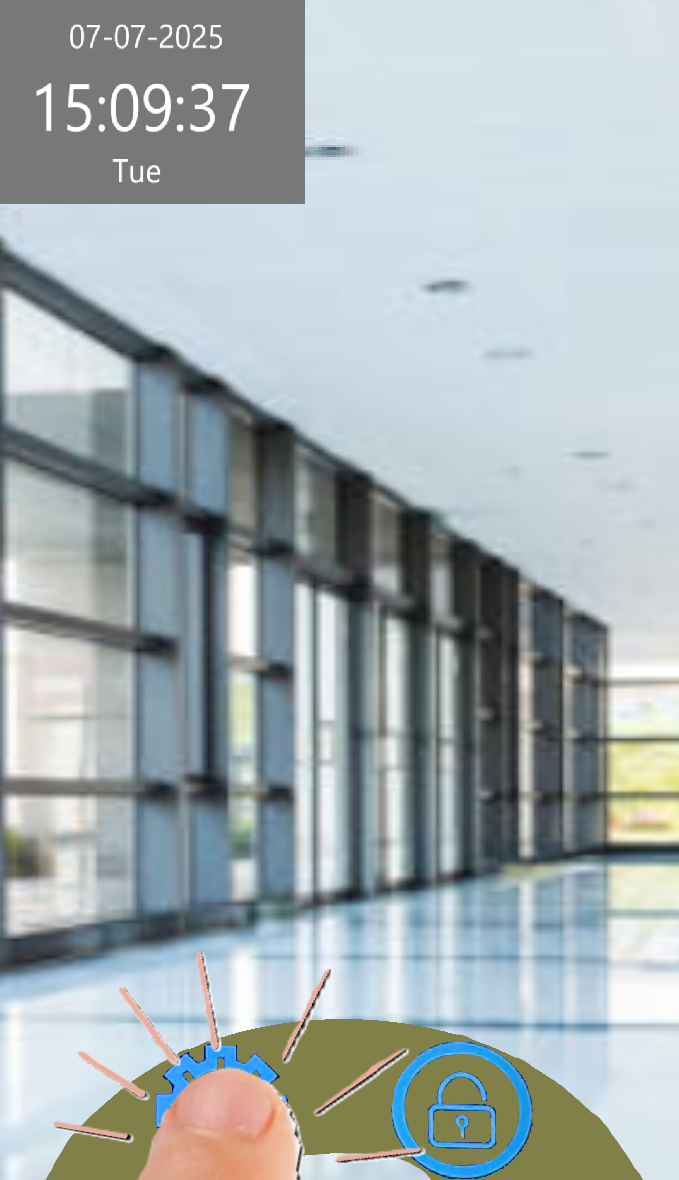

Fifth tap the padlock icon

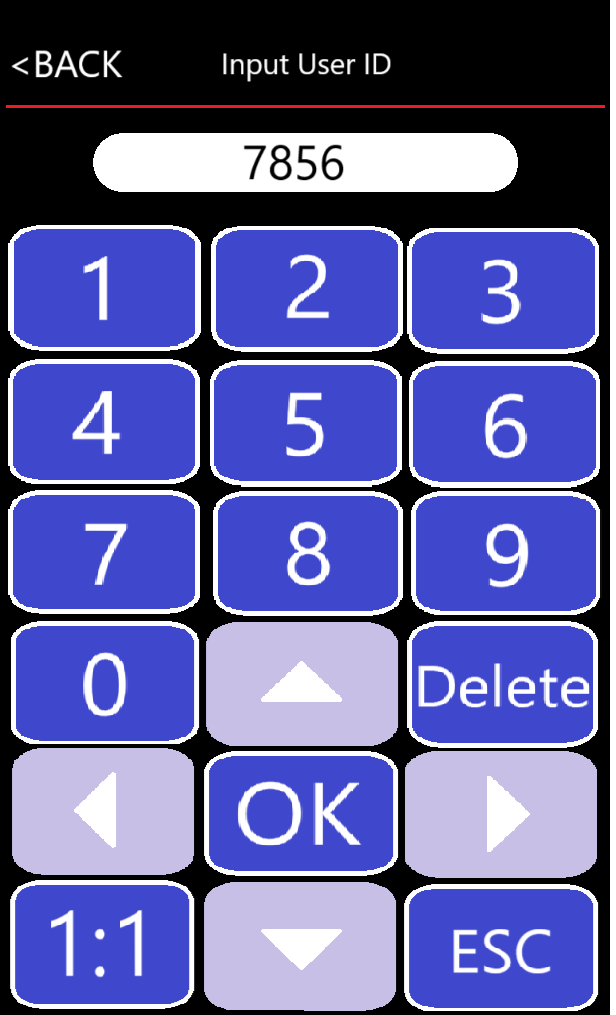

Input the User ID
7856 & OK






Input the Password

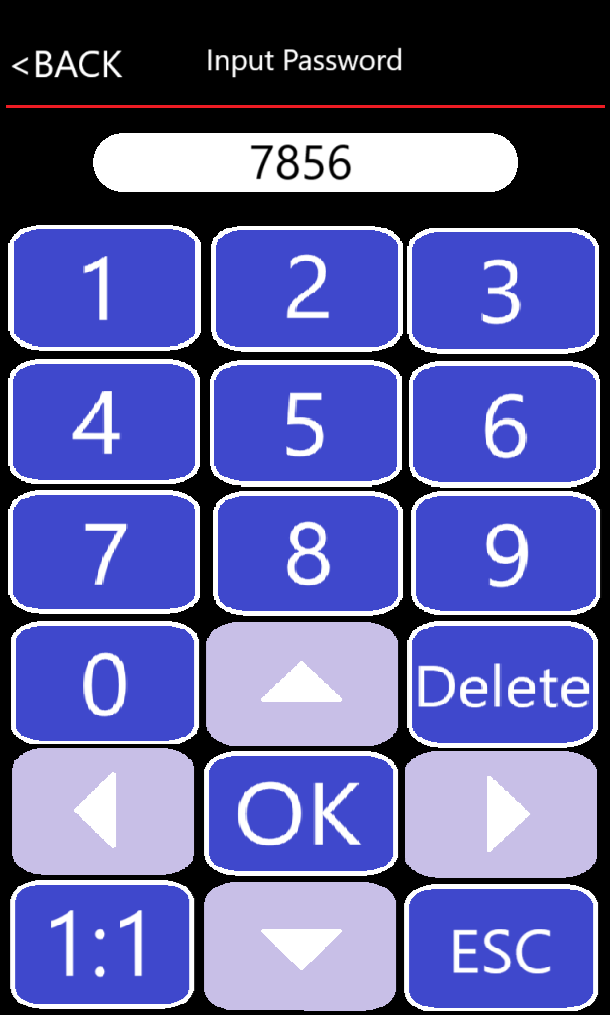

7856 & OK

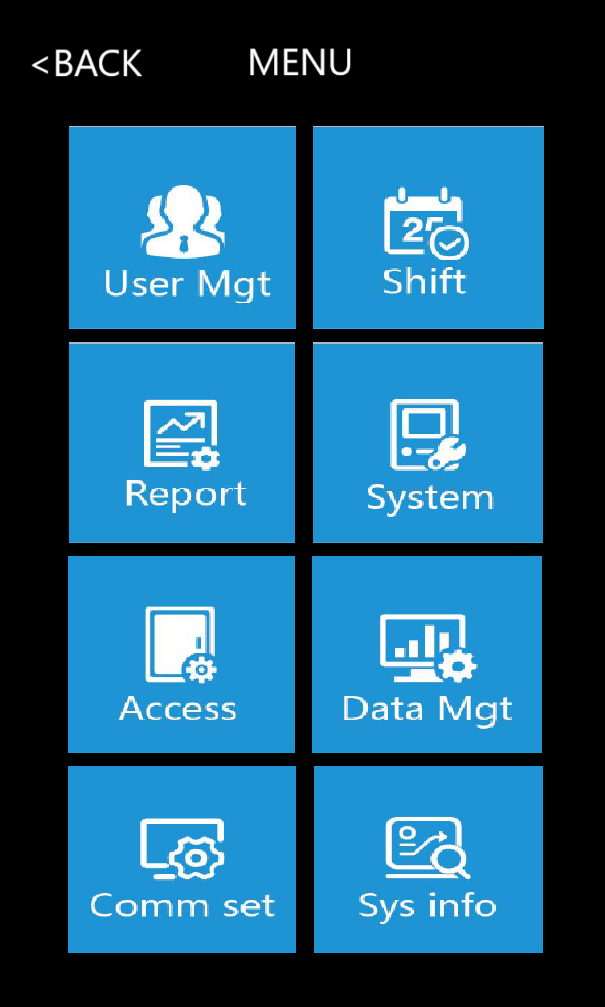

You should now have full access to the Menu




Enrolling a User

To begin enrolment first add a user. After a user has been set up the option to upgrade their privilege to either 'Admin' or 'Sup.User' can be selected. This will be further explained in the section Setting up Privilege Settings.

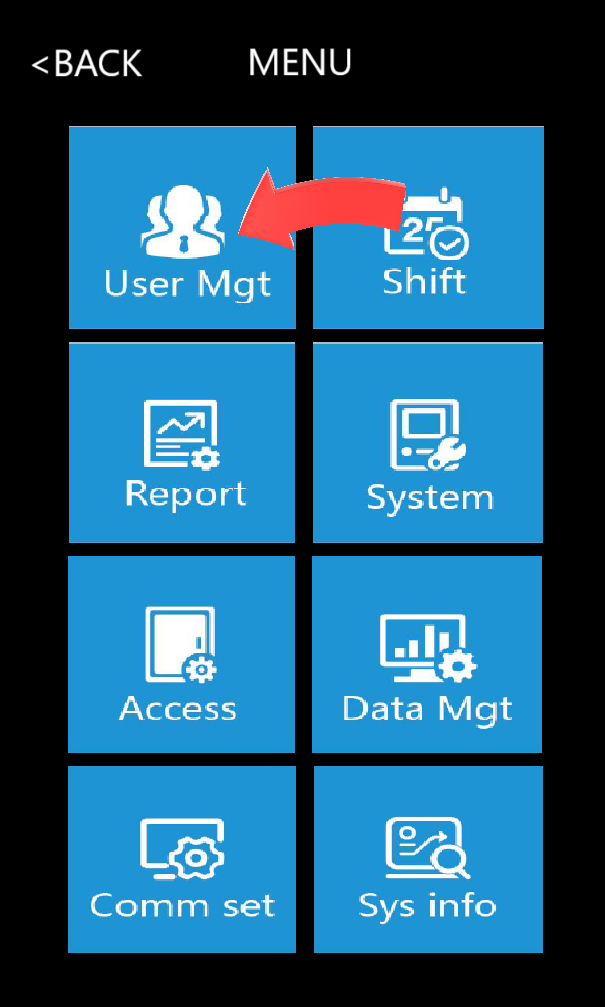

From the main menu tap ‘User Mgt’

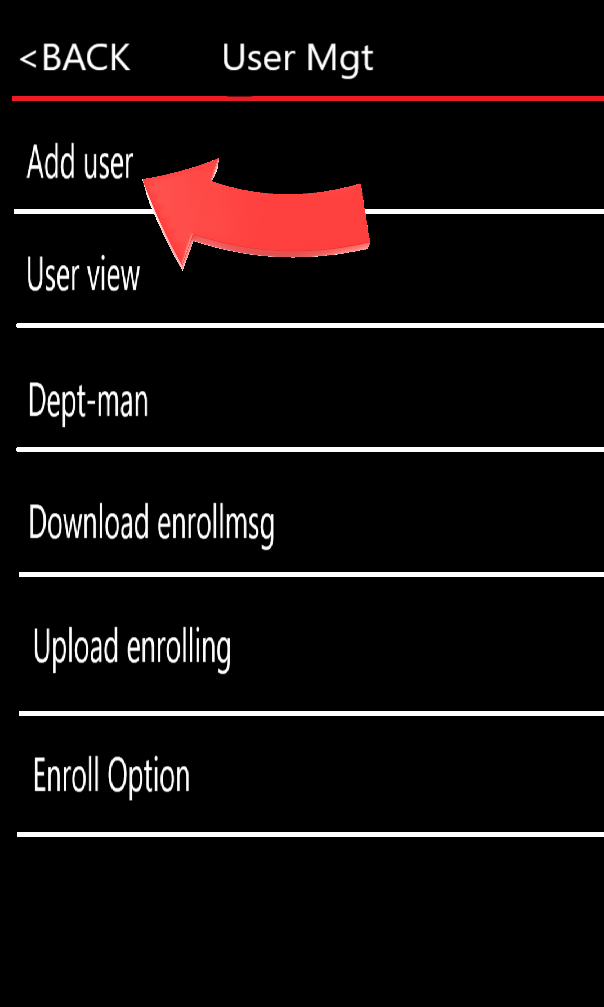

Next tap ‘Add user’

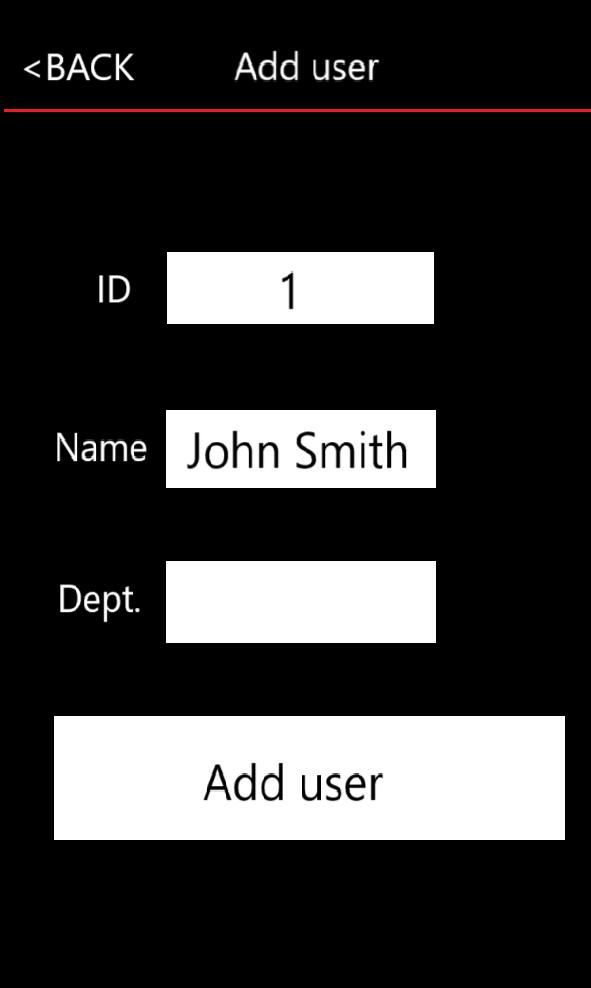

The next available ID will be displayed, or you can input any number you like such as a payroll number. This ID number will be referred to in your software



Tap in the Name box and type in the staff name followed by OK
















A Department box can be filled in if desired



Next tap ‘Add User’ and depending on your terminal specification choose either Face, Fingerprint, Card or Password as enrol option, or any combination




Follow the onscreen prompts for the input method. Tip: When enrolling fingers, you have the option to enrol more than one, but when asked to enrol each finger will require 3 separate presses of the same finger.



Once Complete press the back button to User Mgt screen. The default enrolment will be as a standard user.





Setting up Privilege Settings

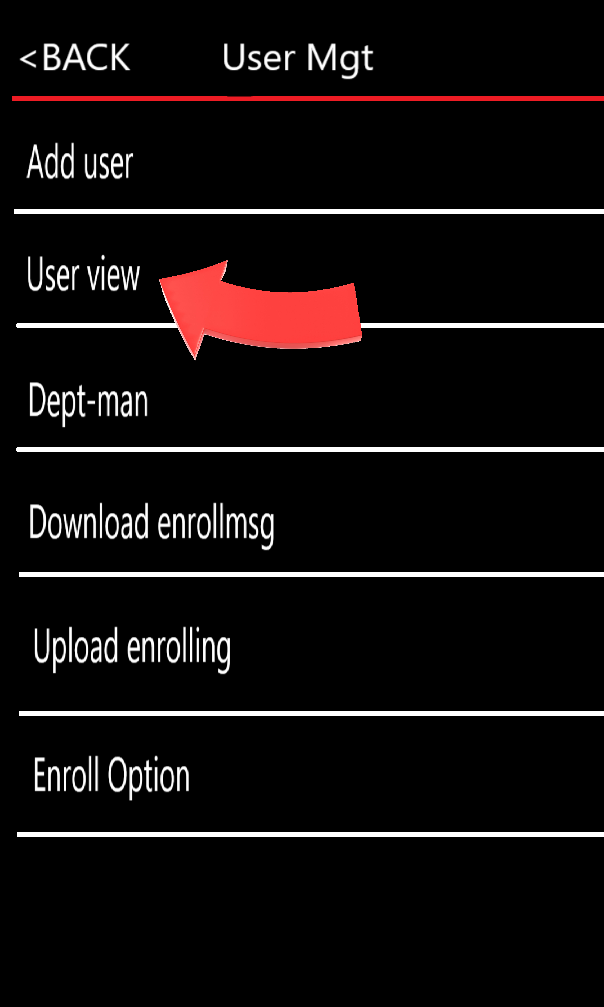

In ‘User Mgt’ menu tap ‘User view’and scroll to and select the desired user to be set for Admin rights by tapping their name

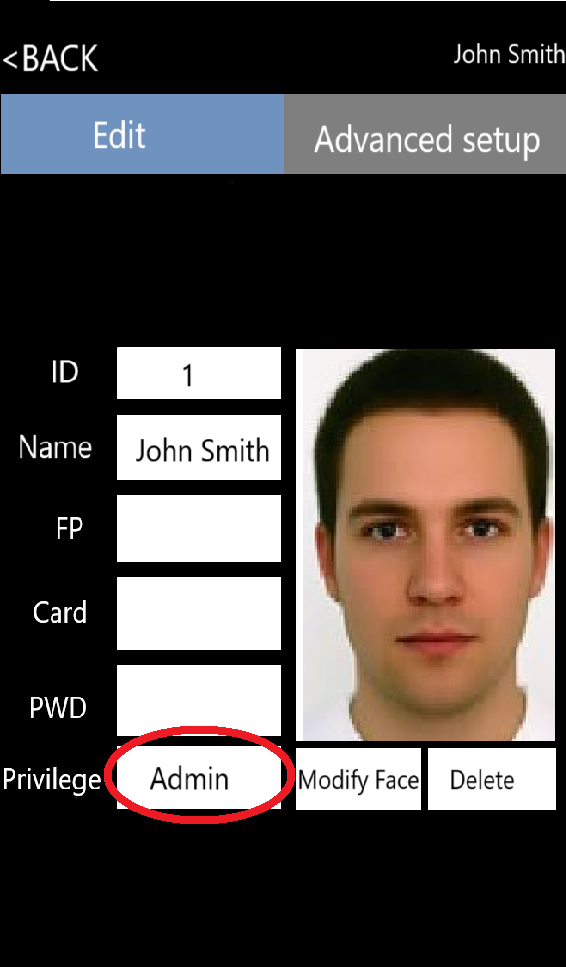

After this tap in the box next to ‘Privilege’ and choose either Admin, Sup.User or leave as User



Note that an Admin will have full access to all settings while a Sup.User will only have access to the User Management options. Also be aware that a Sup.User cannot enrol an Admin.



Once finished you can back out to the User Mgt’ menu and continue enrolling staff or back out to the home screen.



TIP: When accessing the menu as an administrator you can use your face, finger, card or password, depending on your terminal version and which enrolment method you have set up. If you are using face then briefly stand out of the camera view (to avoid clocking) until the Manager symbol is displayed, as described in the section Accessing the terminal.



Clocking In and Out

 The procedure for clocking depends on the method of enrolling for each staff member.



For face, just tap the display and then look into the screen.

For finger, just place the correct finger on the finger sensor.

For card, tap the card on the card symbol.

For password, tap the screen twice, then the padlock, type in user id & OK and then the password followed by OK.



Connections

Ethernet

We always recommend using a network cable for a stable connection, if possible. If you are plugging in a network cable, then your terminal should be ready to connect to our software. Our installation engineers can help with any connection issues so don’t worry if you have any problems or questions at this point. You can carry on using the terminal to enrol and clock staff in and out. The terminal will hold literally thousands of clockings.



Wifi



If you can’t use a network cable, then wifi is an alternative. Just make sure that you have a strong wifi signal at the terminal. Also please note that only 2.4Ghz wifi is supported.



If you want to connect by wifi, firstly, log into the terminal as an Administrator.

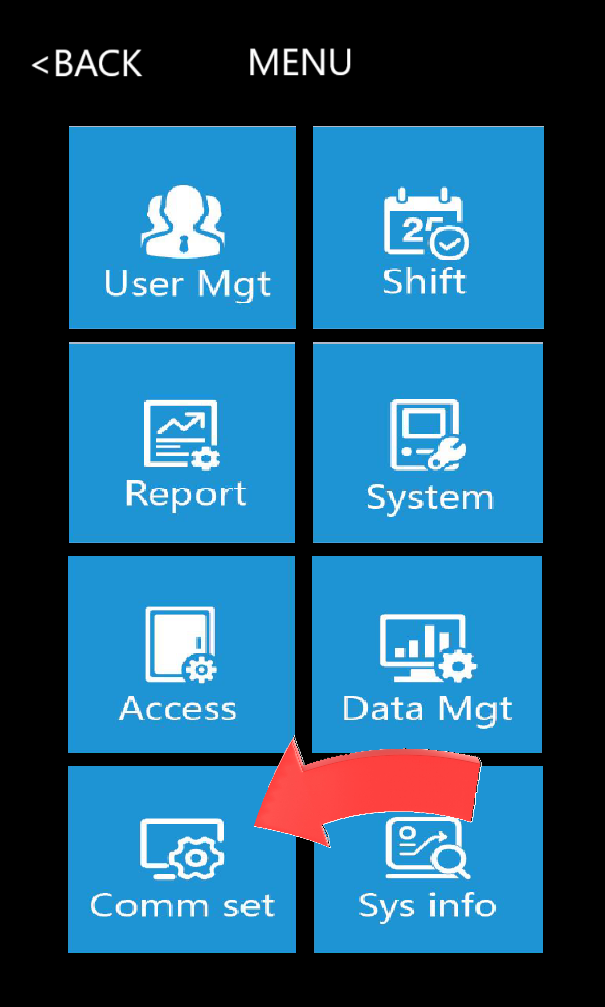

Next tap on ‘Comm set’

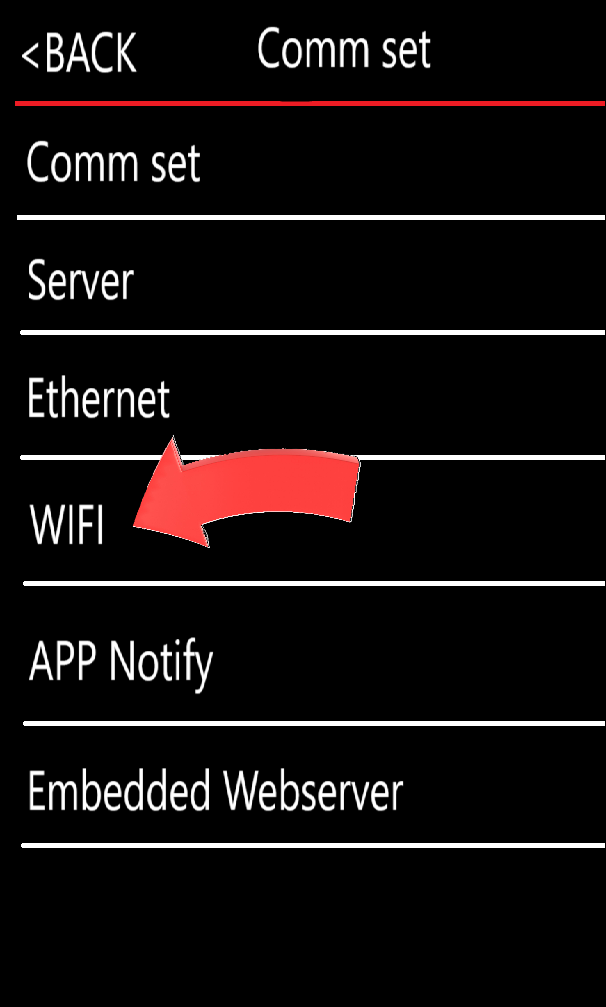

After this, tap’ Wifi’

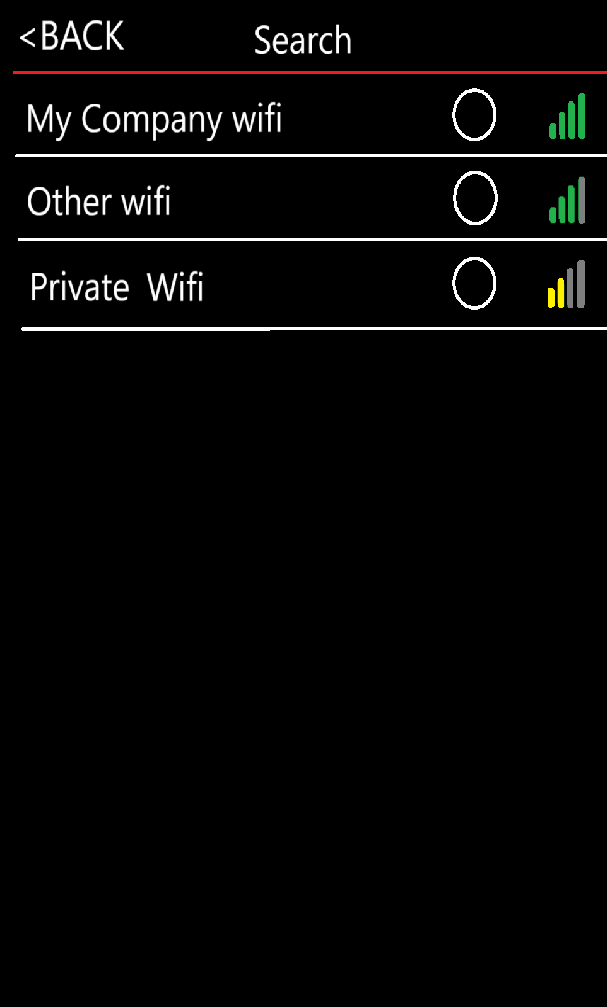

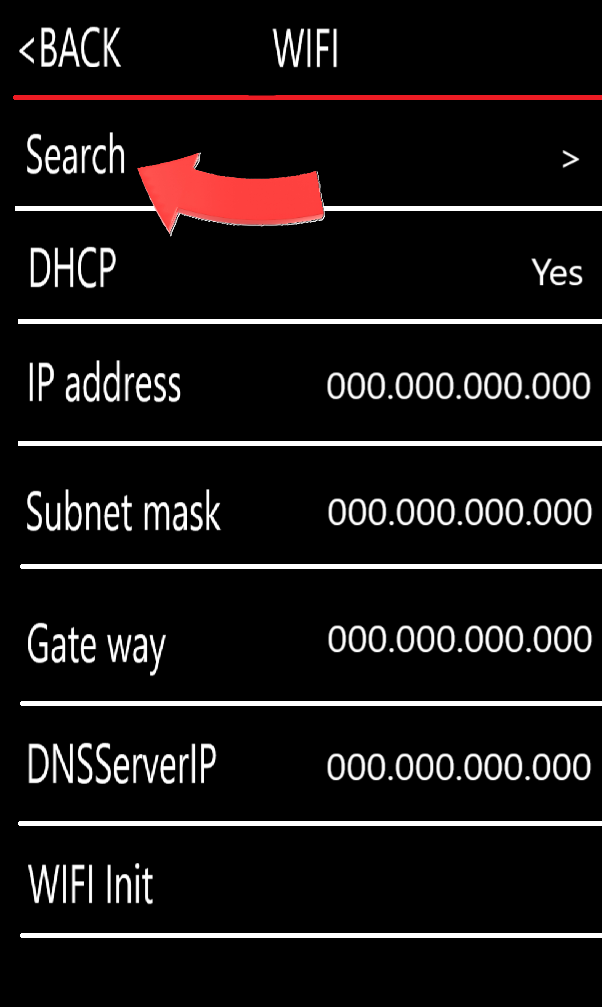

Then tap search to find available wifi connections



Choose the desired connection



TIP: Ensure that at least 3 green bars are displayed to avoid connection problems



Finally type in the wifi password and tap OK.


USB Connection

Another option if you do not have access to an internet connection or wifi is to physically download clockings from the terminal using a USB flash drive. To do this follow these steps:



Firstly, log into the terminal as an Admin (as described in the section ‘Accessing the Terminal’).

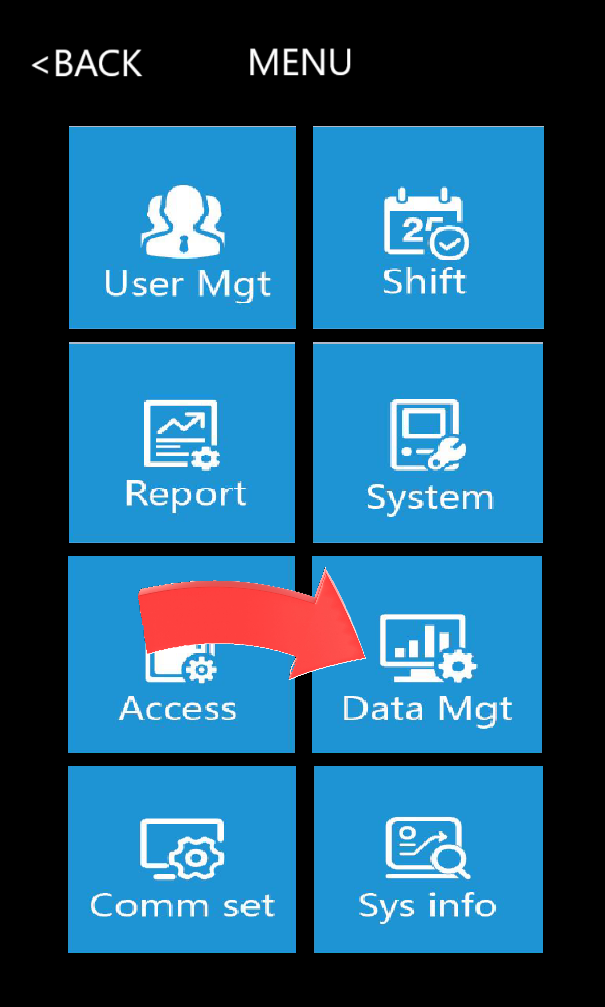

From the Main Menu tap ‘Data Mgt’ and then insert a USB flash drive into the bottom left of the terminal.

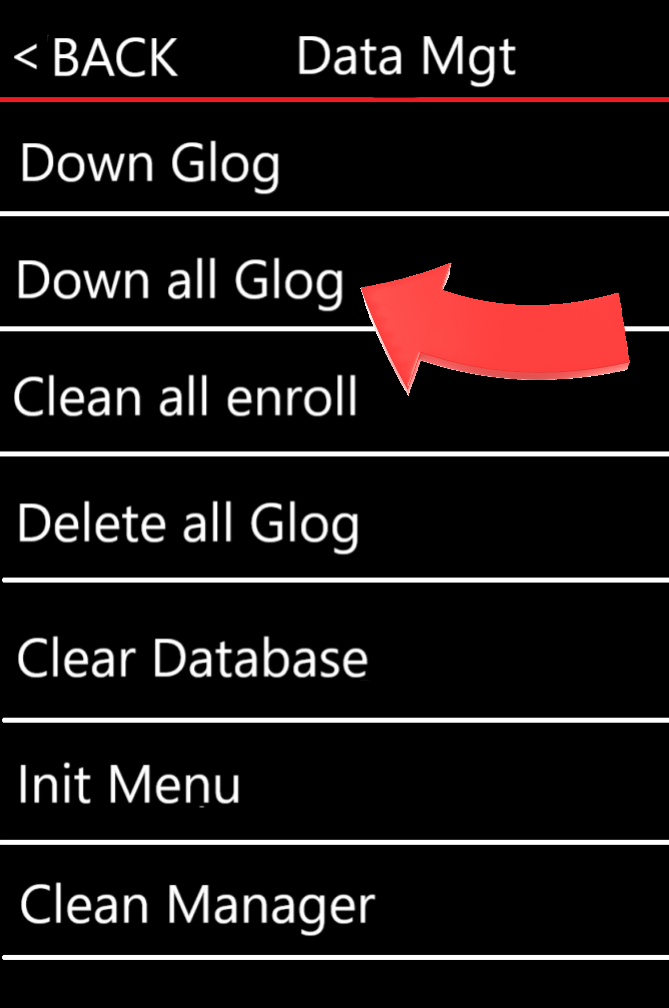

Next tap on ‘Down all Glog’ and wait for the download to complete.





You now have all your clockings on the USB drive ready to upload to the software.
